Εξαντλήθηκε

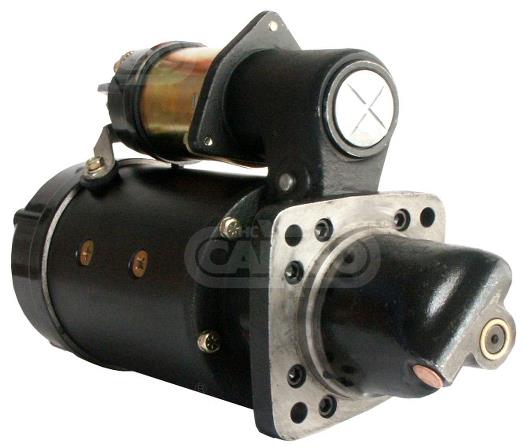

CAR ΜΙΖΑ 12V4.0KW10Δ J.DEERE
€ 375,12 με ΦΠΑ
111224
Στις τιμές συμπεριλαμβάνεται ο ΦΠΑ.
Εξαντλημένο
Περιγραφή
Εναλλακτικοί Κωδικοί
| 001-0000111224 | 111224 | 028000-3290 | 028000-3291 | 028000-3292 | 028000-3295 | 028000-5040 | 028000-6920 | 028000-6921 | 10461039 | 10461303 | 10479054 | 11130663 | 11130860 | 1113402 | 1113640 | 1113641 | 1113644 | 1113650 | 1113651 | 1113653 | 1113656 | 1113672 | 1113676 | 128000-0770 | 128000-0771 | 128000-0772 | 128000-5910 | 128000-5911 | 128000-5912 | 128000-5913 | 128000-5970 | 128000-5971 | 128000-5972 | 128000-5973 | 1990309 | 1990315 | 1990318 | 1990326 | 1993705 | 1993712 | 1993754 | 1993762 | 1993769 | 1993790 | 1993799 | 1993881 | 1993886 | 1993894 | 1993988 | 228000-2360 | 228000-2361 | 228000-4600 | 228000-4601 | X100255 |
Τεχνικά Χαρακτηριστικά
Electrical information
Voltage 12
Kw 4.0
Physical information
H No./teeth 10
P Rotation CW
N Gear type GR
A Mount. flange 88.90
I B+ M10
No./mount. holes 3 (0)
B Drive dist. 47.60
E Mount. holes 10.75
E Mount. hole 2 10.75
E Mount. hole 3 10.75
F Dist./back 310.00
G Dist./front 92.50
M Mount. bracket No
O Dist. mm 128.65
O Dist. 2 90.55
O Dist. 3 90.55
R Total length mm 402.50
Catalogue information
Drive type Steel
Waterproof No
Oil sealed Yes
Remarks Replacing: 37MT.
